Kotobukiya Frame Arms 1/100 SA-17 Rapiere English Manual & Color Guide

I have to say that my interest in the Frame Arms original title line of Kotobukiya has been piqued after seeing the EXF-10/32 Greifen. So because of this I took at gander at the SA-17 Rapiere that was released earlier this year.

SA-17 RAPIERE

Manufacturer:

KOTOBUKIYA

Release Date:

2011

Scale:

1/100

Brand:

FRAME ARMS

The Rapiere is a female form mecha and is based off the SA-16 Stylet. But I guess the correct term should be is that its an upgrade of that earlier design. The Rapiere is designed for agility and speed and comes packed with a Spiral Rifle and a Naginata.

Construction Manual and Color Guide for the 1/100 was translated to English from the Japanese manual posted at Dalong's Gunpla & Model Kit Review site. For the meaning of the symbols found in the Kotobukiya's model kit manual, kindly refer to this older post.

Instruction Manual

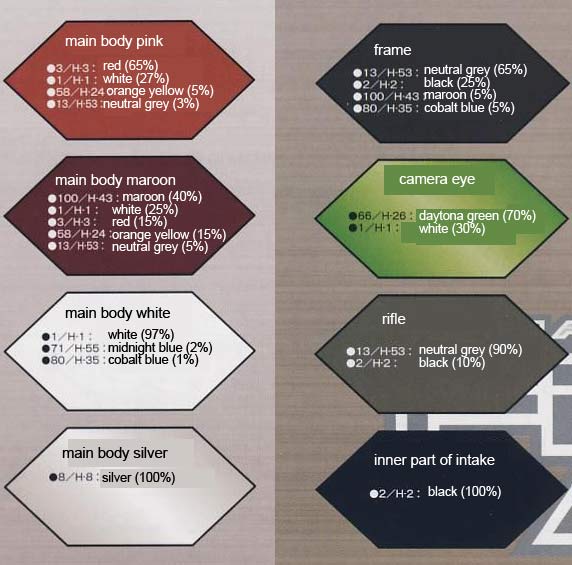

Color Guide (#Ads)

Color Guide Description	Paint Ratios
main body pink part	Red (H3)(65%) + White (H1)(27%) + Orange Yellow (H24)(5%) + Neutral Gray (H53)(3%)
main body maroon part	Wine Red/Maroon (H43)(40%) + White (H1)(25%) + Red (H3)(15%) + Orange Yellow (H24)(15%) + Neutral Gray (H53)(5%)
main body white part	White (H1)(97%) + Midnight Blue (H55)(2%) + Cobalt Blue (H35)(1%)
main body silver part	Silver (H8)(100%)
frame	Neutral Gray (H53)(65%) + Black (H2)(25%) + Wine Red/Maroon (H43)(5%) + Cobalt Blue (H35)(5%)
camera eye	Bright Green/Daytona Green (H26)(70%) + White (H1)(30%)
rifle	Neutral Gray (H53)(90%) + Black (H2)(10%)
intake inner part	Black (H2)(100%)
